In the world of biscuit production, the choice between electric and gas-tunnel ovens is crucial for optimizing efficiency, cost, and product quality. This article explores the advantages and disadvantages of both types of ovens, helping manufacturers make informed decisions for their production lines.

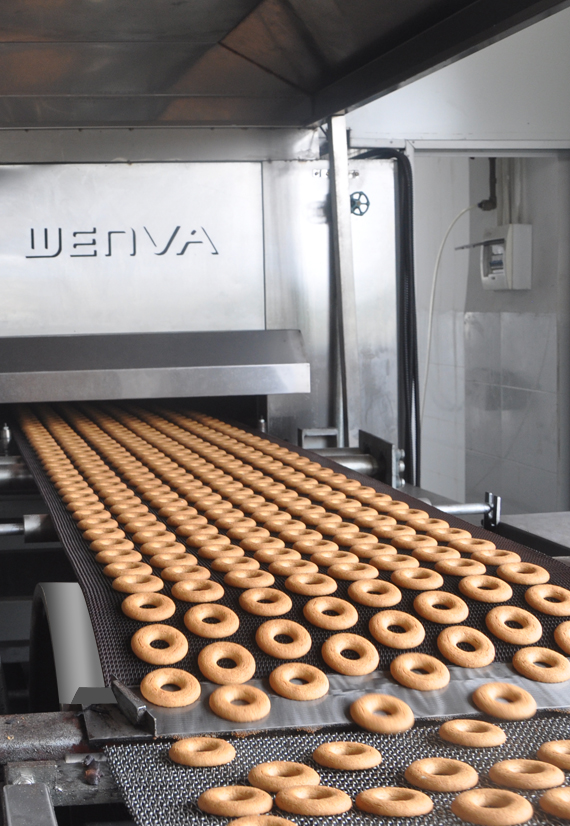

A tunnel oven is a continuous baking system that allows products to be baked as they move through a long, heated chamber. This design is particularly beneficial for high-volume production, as it enables a steady flow of products without the need for batch processing. The continuous nature of tunnel ovens means that they can handle large quantities of biscuits, making them ideal for commercial bakeries.
Tunnel ovens operate by using either gas or electric heating elements to maintain consistent temperatures throughout the baking process. Products enter the oven on a conveyor belt, where they are subjected to controlled heat for a specified duration, ensuring even baking. The design of the oven allows for uniform heat distribution, which is essential for achieving consistent results in biscuit quality.
1. Precise Temperature Control: Electric ovens provide more accurate temperature settings, which is essential for baking delicate biscuits that require specific conditions. This precision helps in achieving the desired texture and flavor profile of the biscuits.
2. Energy Efficiency: While the initial investment may be higher, electric ovens can be more energy-efficient in the long run, especially in regions where electricity costs are lower than gas. The ability to control energy consumption can lead to significant savings over time.
3. Cleaner Operation: Electric ovens produce no emissions, making them a cleaner option for indoor environments. This is particularly important for bakeries located in urban areas where air quality regulations may be stringent.
4. Less Maintenance: Electric ovens generally require less maintenance than gas ovens. There are no burners to clean or gas lines to inspect, which can save time and reduce operational costs.
1. Higher Initial Costs: The upfront cost of electric ovens can be significantly higher than gas ovens. This initial investment can be a barrier for smaller bakeries or startups.
2. Longer Heating Times: Electric ovens may take longer to reach the desired temperature compared to gas ovens. This can lead to delays in production, especially during peak baking times.
3. Dependence on Electricity: In areas prone to power outages, electric ovens may not be the best choice. A reliable power supply is essential for consistent operation.
1. Lower Operating Costs: In many regions, gas is cheaper than electricity, making gas ovens more cost-effective for large-scale operations. This can lead to significant savings in energy costs over time.
2. Faster Heating: Gas ovens typically heat up more quickly, reducing the time needed to start production. This rapid heating capability can be a significant advantage during busy production periods.
3. High Heat Output: Gas ovens can achieve higher temperatures, which can be beneficial for certain types of biscuits that require a crispy texture. The ability to reach high temperatures quickly can enhance the overall quality of the baked goods.
4. Flexibility in Baking: Gas ovens can provide a range of heat settings, allowing bakers to adjust the temperature based on the specific requirements of different biscuit recipes.
1. Less Precise Temperature Control: Gas ovens may have fluctuations in temperature, which can affect the consistency of the baked product. This variability can lead to challenges in maintaining quality across batches.
2. Emissions: Gas ovens produce emissions, which may require additional ventilation and can be a concern in indoor environments. Bakeries must ensure proper ventilation systems are in place to comply with health and safety regulations.
3. Maintenance Requirements: Gas ovens require regular checks for gas leaks, burner efficiency, and proper ventilation to ensure safe operation. This maintenance can add to the overall operational costs.
| Item | Steel Structure Electric Oven | Steel Structure Direct Gas-Fired Oven |
|---|---|---|
| Conveyor Belt | 45# Energy-Saving Belt | 45# Energy-Saving Belt |
| Belt Width | 1070 mm | 1070 mm |
| Oven Length | 60 m | 60 m |
| Outer Casing | 430# Stainless Steel; sides with 1.5mm 430# SS panels; top with 1.5mm 430# SS panel | 430# Stainless Steel; outer casing made of 1.5mm A3 plate |
| Inner Liner | ~2.5mm Aluminized Plate (sides & top) | ~2.5mm Aluminized Plate (sides & top) |
| Insulation | Bottom: 200mm Rock Wool; Sides: 300mm Rock Wool; Top: 300mm Rock Wool | Bottom: 200mm Rock Wool; Sides: 250mm Rock Wool; Top: 300mm Rock Wool |
| Furnace Structure | Wear-resistant cast iron strips inside; bottom supported by roller system | Wear-resistant cast iron strips inside; bottom supported by roller system |
| Heating Method | Electric heating tubes, 600 kW installed capacity, 4 heating zones | Direct gas-fired burners, 4 heating zones: (1) 12m, 38 burners; (2) 12m, 38 burners; (3) 15m, 36 burners; (4) 15m, 34 burners |
| Control System | — | PLC: Shenzhen Inovance; Touch Screen: Kinco; Low-voltage Components: Tengen |
| Exhaust Pipes | 5 pcs ￠200mm×0.5mm stainless steel pipes, extending 1m outside the wall | 6 pcs ￠200mm×0.5mm stainless steel pipes, extending 1m outside the wall |
The scale of production is a significant factor in choosing between electric and gas ovens. For high-volume operations, gas ovens may offer better efficiency and lower costs. Conversely, smaller operations may benefit from the precision of electric ovens. Understanding the production capacity needed can help in making the right choice.
Different types of biscuits may require different baking conditions. For example, delicate cookies may perform better in electric ovens, while sturdier biscuits may thrive in gas ovens. The specific requirements of the biscuit recipes should guide the decision-making process.
Consider the local energy costs when making a decision. In areas where gas is significantly cheaper than electricity, gas ovens may be the better choice. Conversely, in regions with high gas prices, electric ovens may be more economical. Conducting a cost analysis based on local energy rates can provide valuable insights.
Electric ovens generally require less maintenance than gas ovens, which may need regular checks for gas leaks and burner efficiency. Evaluate the operational capabilities of your team when making a choice. If the team is more experienced with gas systems, it may influence the decision.
The physical space available for the oven installation is another important consideration. Gas ovens may require additional space for ventilation and safety measures, while electric ovens may have a more compact design. Assessing the layout of the production facility can help determine which type of oven will fit best.
Hybrid ovens combine the benefits of both electric and gas systems, allowing for flexibility in production. These ovens can switch between gas and electric heating, providing manufacturers with the ability to adapt to changing energy costs and production needs. Hybrid systems can be particularly advantageous in fluctuating energy markets, allowing bakeries to optimize their operations based on current conditions.
1. Versatility: Hybrid ovens can be adjusted to use either gas or electric heating, providing flexibility based on energy costs and production requirements.
2. Cost Savings: By switching between energy sources, bakeries can take advantage of lower energy prices, leading to potential cost savings.
3. Improved Efficiency: Hybrid ovens can optimize baking conditions for different products, ensuring high-quality results across a range of biscuit types.
1. Complexity: The dual system can introduce complexity in operation and maintenance, requiring staff to be trained on both gas and electric systems.
2. Higher Initial Investment: Hybrid ovens may have a higher upfront cost compared to single-source ovens, which can be a consideration for budget-conscious bakeries.
Choosing between electric and gas-tunnel ovens for biscuit production involves careful consideration of various factors, including production volume, product type, energy costs, and maintenance requirements. By understanding the advantages and disadvantages of each option, manufacturers can make informed decisions that align with their operational goals. The emergence of hybrid ovens also offers a promising solution for bakeries looking to maximize efficiency and adaptability in their production processes.
Electric ovens provide precise temperature control and cleaner operation, while gas ovens are typically more cost-effective and heat up faster.
Gas tunnel ovens are generally better for high-volume production due to their lower operating costs and faster heating times.
Yes, hybrid ovens offer flexibility by allowing manufacturers to switch between gas and electric heating, adapting to energy costs and production needs.
Gas ovens require regular checks for gas leaks, burner efficiency, and proper ventilation to ensure safe operation.
In regions where gas is cheaper than electricity, gas ovens may be more cost-effective. Conversely, in areas with high gas prices, electric ovens may be the better choice.
