Modern bakeries and industrial food producers require precision-engineered solutions to meet growing demands for filled cookies. Selecting the right center filled cookie machine directly impacts production efficiency, product consistency, and profitability. This guide explores critical factors to consider, types of machines available, and best practices for integrating these systems into automated production lines.

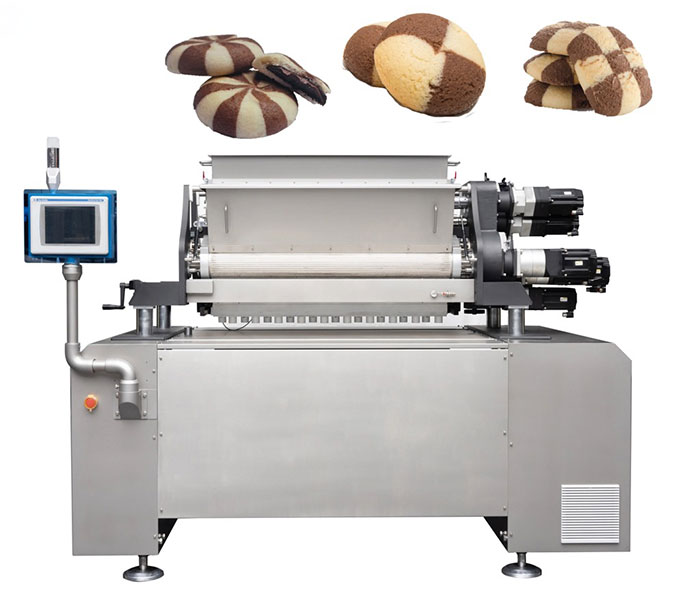

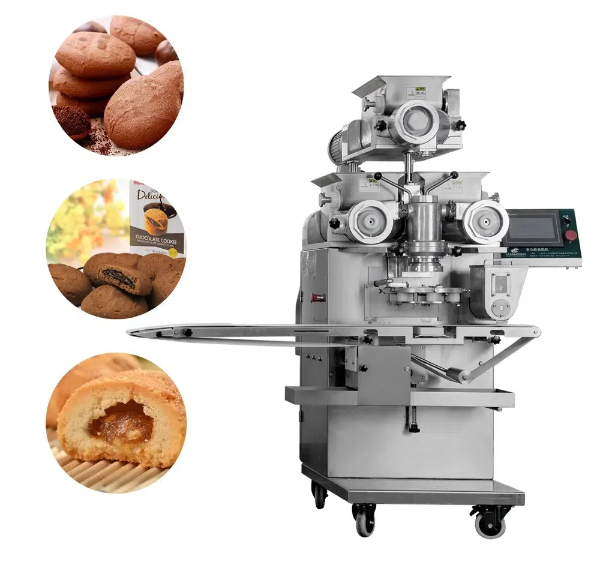

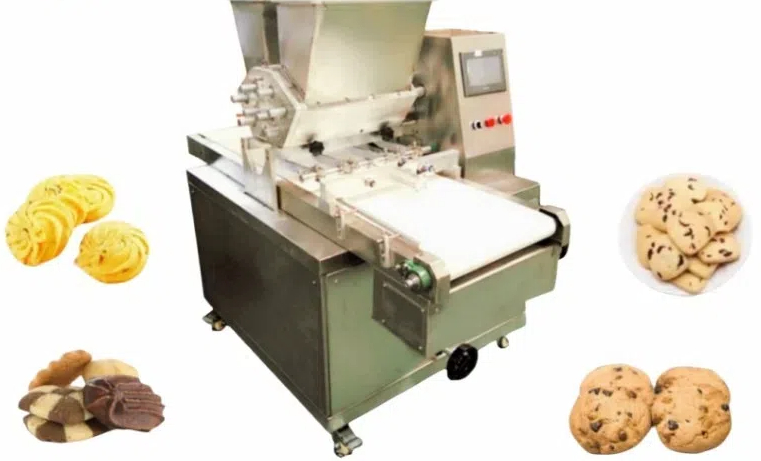

A center filled cookie machine automates the process of injecting fillings (jam, cream, chocolate, etc.) into cookie dough through synchronized mechanical operations. These systems combine dough extrusion, filling deposition, and shaping technologies to create uniform products at scale.
Key components include:
- Dual hoppers (stainless steel 304) with 50-200L capacity
- Servo-driven depositors (±0.5g filling accuracy)
- Interchangeable nozzles (3–35mm diameters)
- IoT sensors monitoring temperature, pressure, and viscosity
Advanced models like PAPA P168 feature dual-axis synchronization, maintaining ±1mm positional accuracy at 120 pieces/minute.
Match the machine's output to your factory's needs:
| Operation Scale | Output Range | Recommended Models |
|---|---|---|
| Artisan Bakeries | 600–2,000/hr | ANKO SD-5S (Tabletop) |
| Medium Factories | 3,000–6,000/hr | Empire HD-4000 Dual Line |
| Industrial Plants | 8,000–15,000/hr | PAPA P168 Rotary System |
Ensure compatibility with:
- Low-viscosity fillings (1,000–5,000 cP): Fruit syrups, liquid chocolate
- Medium-viscosity (10,000–50,000 cP): Cream cheese, caramel
- High-viscosity (100,000+ cP): Peanut butter, cookie dough fillings
The Empire HD-4000 uses progressive cavity pumps capable of handling 200,000 cP pastes without separation.
Modern center filled cookie machines incorporate:
- 15" HMI panels with 100+ recipe memory slots
- Predictive maintenance algorithms tracking motor wear
- OPC UA connectivity for Industry 4.0 integration
- Shear-sensitive doughs: Rotary molders with Teflon-coated surfaces
- High-fat formulas: Water-jacketed extrusion heads (5–10°C)
- Laminated textures: Multi-layer co-extrusion systems
- Speed: 4,000–5,500 pieces/hour
- Accuracy: ±1.2g weight variation
- Best For: Chocolate chip/oatmeal cookies
- Speed: 6,000–8,000 pieces/hour
- Filling Capacity: Up to 40% of total weight
- Special Features: Dual-color dough blending
- Layers: 2–5 simultaneous material flows
- Applications: Jam-filled sandwich cookies
- Tolerance: ±0.8mm concentricity
- Servo motors: 400W–3kW power range
- Repeatability: ±0.01mm on linear axes
- Energy Use: 15–45 kWh depending on throughput
- Surface Finish: Ra ≤ 0.8μm (3-A Sanitary Standards)
- Drainage: 2° minimum slope on all surfaces
- CIP Systems: Available on industrial models
A complete cookie production line typically includes:
1. Mixing: Twin-shaft 500L mixers (30–60 RPM)
2. Forming: Center filled cookie machine with 8–24 nozzles
3. Baking: 40m tunnel ovens (160–220°C zones)
4. Cooling: 25m spiral conveyor (15–20°C)
5. Packaging: Robotic pick-and-place systems
| Frequency | Tasks | Tools Required |
|---|---|---|
| Daily | Nozzle cleaning, lubrication | Food-safe brushes, NSF H1 oil |
| Weekly | Belt tension checks, sensor calibration | Laser alignment tools |
| Monthly | Pump overhaul, PLC backup | Torque wrenches, SD cards |
| Machine Class | Price Range | Lifetime | Maintenance Cost/Year |
|---|---|---|---|
| Entry-level | $28,000–$45,000 | 8–10 years | $2,500–$4,000 |
| Mid-range | $65,000–$120,000 | 12–15 years | $5,000–$8,000 |
| Industrial | $200,000+ | 15–20 years | $12,000–$18,000 |
1. AI Vision Systems: Real-time defect detection (99.7% accuracy)
2. Digital Twins: Virtual machine modeling for process optimization
3. Blockchain Tracking: Ingredient from mixer to packaging
Selecting the ideal center filled cookie machine requires balancing output targets, recipe complexity, and long-term operational costs. Leading manufacturers like ANKO, Empire Bakery, and PAPA Industrial offer robust solutions with IoT capabilities and customizable attachments. Always request live demos and trial batches to verify machine performance with your specific dough and filling formulations.
Use viscosity modifiers like pectin or starch (3–5% by weight) and maintain extruder temperatures within ±2°C of filling's ideal range.
Most industrial center filled cookie machines require 50kg minimum dough batches for stable operation.
Yes – companies like FoodTech Upgrade offer retrofit kits ($8,000–$15,000) adding sensors and connectivity.
Maximum recommended dough wall thickness is 8mm for single-nozzle systems. Dual injection heads allow up to 12mm.
Look for CE, UL, and NSF/3-A Sanitary certifications, along with ISO 9001-compliant manufacturing.
